NEW: Mogami 3408 twisted pair - digital precision in a Japanese design

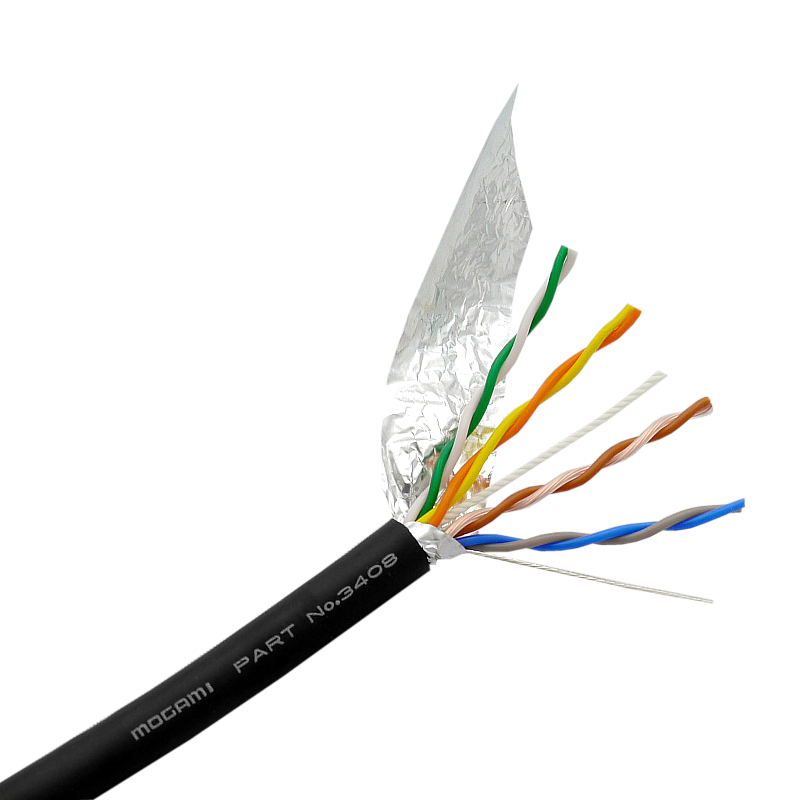

What distinguishes the Mogami 3408 STP?
- Flexible construction - made entirely of flexible copper wire, the cable behaves like a classic microphone cable: it does not memorise its shape and is easy to lay down, making it significantly easier to install in stage conditions.
- Reinforced fibre-steel core - increases the cable's mechanical resistance by approximately 30% over the previous Mogami 3367 model. Ideal for demanding mobile applications.
- Full Cat5e performance up to 90 metres - guaranteed quality and reliability for Dante, AES/EBU transmissions and other multimedia applications.
- Standards and certifications - the cable complies with UL 20124 AWM VW-1 30V 60°C and TIA/EIA-568B (Cat5e). As of 2016, each Mogami Ethernet cable has an individual serial number and data rate certification.
Full certification - each cable undergoes quality testing:
- Data rate: 1 Gbps
- Signal-to-noise ratio (SNR)
- Pair-to-pair delay (Skew)
- Bit Error Rate Test (BERT)
- Connection continuity test - detects cable length, short circuits, breaks, inversions, increased resistance or faulty connections.
A certificate with the measurement results is included with each cable.
Applications
Mogami 3408 STP is a touring grade twisted pair cable designed for professional audio and video systems - both analogue and digital. It is ideal for:
in stage and stage installations,
in concert and event tours,
as a network or signal cable (e.g. in 4-channel systems),
in situations where flexibility, durability and transmission reliability are required.
In addition, the steel core can act as ground in the transmission of analogue signals.
For whom?
For rental companies, sound, lighting, video, stage technicians, sound engineers and AV installers who are looking for a durable, flexible and certified twisted pair network cable for professional mobile applications.
Extras and personalisation
On special request, we offer a polyester connector cover at a gross price of £24.99 each.
